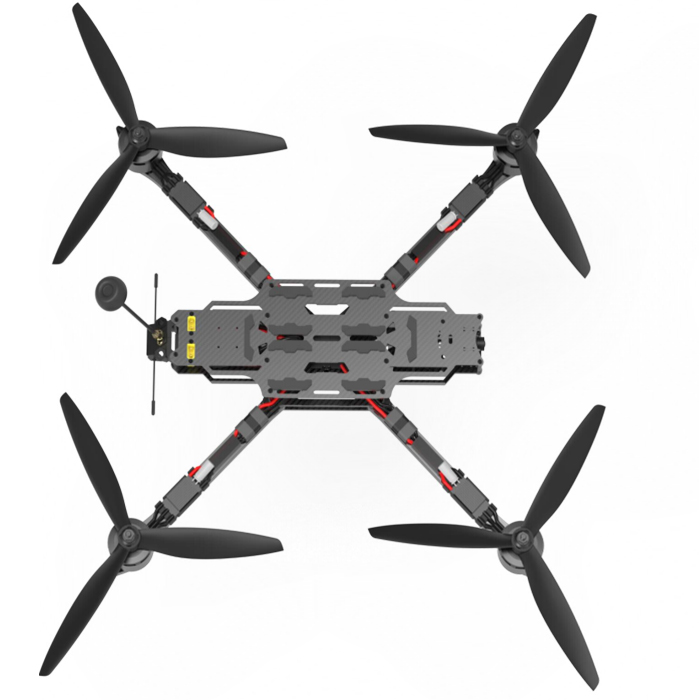

ZTK-15B UAV

The ZTK-15B unmanned aerial vehicle is equipped with industry-leading components that ensure exceptional performance, durability, and stability—key traits for professional UAV operations. Its professional hardware configuration, including a 15-inch Mark4 carbon fiber frame, 4219 440KV brushless motors, F405 V3 flight controller, and ELRS915 long-range receiver, supports long-distance, high-payload, and high-stability missions, making the ZTK-15B unmanned aerial vehicle superior to standard industrial drones in its class.

Product parameters

Rack: 15 inch Frame Mark4
Rack Type  Positive: X Type
Flight control: F405 V3
ESC: 110A ESC 4IN1 8S
VTX: 5.8G 3W(optional)
Antenna: 5.8G 151mm 3.5dBi
Camera: 1500TVL 165 ° wide-angle (optional)
Motors: 4219 440KV Motorss
Props: 1510*3
Receiver: Elrs915
Drone Weight: 2080g
Maximum flight speed: 130km/h
Rated load: 7.0KG
Maximum load: 8.0KG
Maximum take-off weight: 13.0KG
Recommended battery: 8S 16000mAh XT90 plug
Flight time: Rated load about 12 minutes @ 16000mAh
