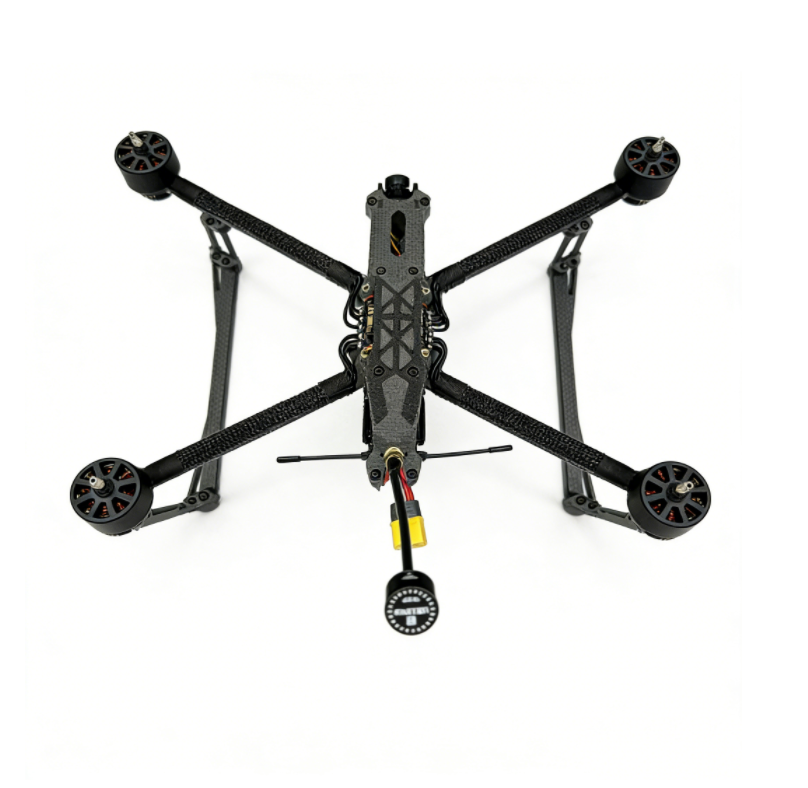

ZTK-10 FPV Drone

ZTK-10 First Person View Drone is equipped with FPV-optimized professional components, featuring a 10-inch Mark4 X-Type frame, 4IN1 6S 65A ESC, and lightweight 800g body design of ZTK-10 First Person View Drone. ZTK-10 First Person View Drone has a maximum flight speed of 140km/h and dual-battery compatible flight time (9-11 minutes), it delivers exceptional responsiveness, signal reliability, and load-bearing flexibility—ideal for high-speed FPV racing, lightweight aerial cinematography, and small-scale professional missions with ZTK-10 First Person View Drone.

Product parameters

Rack: 10 inch Frame Mark4
Rack Type  Positive: X Type
Flight control: F405 V3
ESC: 65A ESC 4IN1 6S
VTX: 5.8G 3W(optional)
Antenna: 5.8G 151mm 3.5dBi
Camera: 1200TVL 165 °wide Angle（optional）
Motors: 3115 900KV Motors
Props: 1050*3
Receiver: Elrs915
Drone Weight: 800g
Maximum flight speed: 140km/h
Rated load: 3.0KG
Maximum load: 4.0KG
Maximum take-off weight: 6.5KG
Recommended battery:  6S 8500mAh XT60 plug
Flight time: Rated load about 9 minutes @ 8500mAh； Rated load about 11 minutes @ 10000mAh
